Carrier VRF Heat Recovery System

Get a Price/Quote

MOQ : 1 Piece

Carrier VRF Heat Recovery System Specification

Indoor Fan Input
180-400W (depends on model)

Place of Origin
India

Sensible control
Yes

Power Consumption
Low (depends on load and capacity)

Heating Capacity
25.0 kW to 168 kW (varies by model)

Condition
New

Type Of Compressor
DC Inverter Type

Power Supply
380-415V 3N~ 50Hz

Refrigerant
R410A

Power Mode
Automatic (Heat Recovery, Cooling, or Heating)

Filtration Grade
Standard, High Efficiency Optional

Compressor
Twin Rotary/Scroll Type

Air Flow Capacity
High (varies by indoor/outdoor unit: up to 12000 m3/h)

Mounting
Floor Standing (Outdoor Unit), Ceiling/Floor/Wall (Indoor Unit)

Cooling Capacity
22.4 kW to 150 kW (varies by model)

Running Current
Varies with capacity (25-55 A per outdoor unit)

Dimension (L*W*H)
Outdoor: 12407651670 mm (varies by model)

Outdoor Fan Input
550-2200W (depends on size)

Temperature Control
Precise Digital Control

Type
VRF Heat Recovery System

Cooling/Heating
Yes (Heat Recovery)

Capacity
8 HP to 54 HP (varies by model)

Power Source
Electric

Voltage
380~415V, 3 Phase, 50Hz

Color
White/Grey

Weight (kg)
Varies by model, 130-500 kg

Working Temperature
-5C to 48C (cooling), -20C to 24C (heating)

Fan Speed
Multiple adjustable speeds

Noise Level
Low (as per model, typically <60 dB for outdoor units)

Energy Efficiency Rating
High (up to 4.6 EER, varies with conditions)

Remote Operated
Yes

Indoor Unit Types
Cassette, Ducted, Wall-mounted, Floor-ceiling

Installation Location
Commercial buildings, hospitals, hotels, offices

Piping Length
Maximum total 1000 meters, maximum distance between ODU and IDU: 165 m

Communication Protocol
RS485, BACnet, Modbus compatible

Heat Exchanger
Hydrophilic finned coil

Maximum Height Difference
Up to 110 m between indoor and outdoor units

Operating Humidity
Up to 80% RH (non-condensing)

Pipe Connection Size
Gas: 1-5/8" to 2-1/8", Liquid: 5/8" to 1-1/8"

Control System
Centralized controller with remote monitoring

Oil Return System
Smart Oil Management System

System Protection
High/Low Pressure, Overload, Phase Sequence, Anti-freeze

Defrost Mode
Automatic

System Type
3-pipe Heat Recovery with simultaneous cooling and heating functions

Max Number of Connectable Indoor Units
64 units (varies by model)

Carrier VRF Heat Recovery System Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

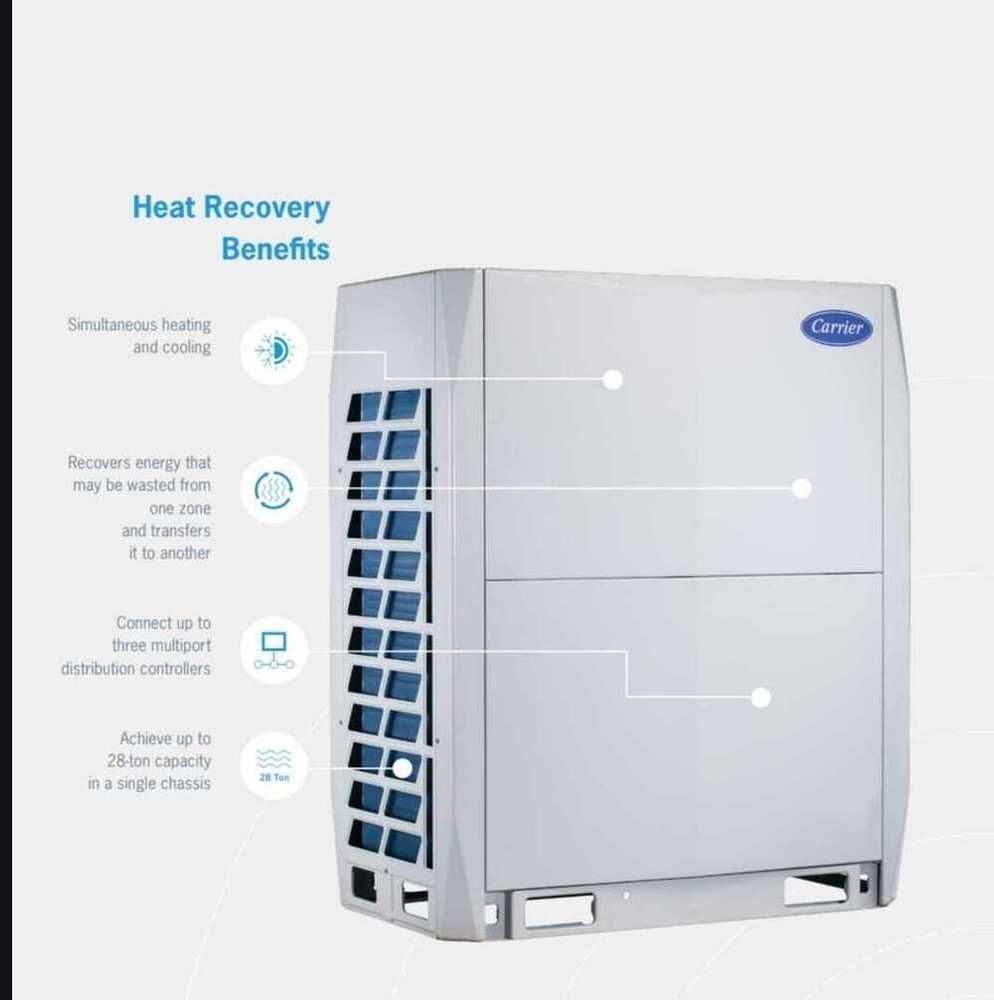

Carrier VRF Heat Recovery System About

Discover the top-rated Carrier VRF Heat Recovery System, designed for a transcendent climate experience in commercial buildings, hotels, hospitals, and offices. This crackerjack, masterful 3-pipe system simultaneously offers both heating and cooling, using advanced hydrophilic finned coils and a smart oil management system. Benefit from a high energy-efficient solution-up to 4.6 EER-with whisper-quiet operation, centralized control, and remote monitoring. Seize this fresh innovation for a limited time, compatible with RS485, BACnet, Modbus, and offering flexible indoor unit options, optimized for complex demands.

Carrier VRF Heat Recovery: Superior Versatility for Commercial Spaces

The Carrier VRF Heat Recovery System excels with competitive advantages like simultaneous heating and cooling, high efficiency, and automatic protection features. Suitable for hospitals, hotels, offices, and large commercial buildings, it adapts easily with multiple mounting options. Its expansive connectable indoor units and long piping capabilities ensure seamless application across diverse surfaces and layouts. Engineered for reliability, it's a top solution for demanding indoor climate control requirements.

Sample Availability and Seamless Supply Process

Sample units for Carrier VRF Heat Recovery Systems are available for handover upon request, ensuring you inspect quality firsthand before purchase. With robust supply ability and prompt goods transport, delivery timelines are streamlined. The FOB port is conveniently located for national and international clients. For precise asking price details and order processing, connect with our sales team. Carrier ensures professional logistics and coordination tailored for traders, suppliers, and service providers across India.

FAQ's of Carrier VRF Heat Recovery System:

Q: How does the Carrier VRF Heat Recovery System facilitate simultaneous cooling and heating?

A: The Carrier VRF Heat Recovery System uses a sophisticated 3-pipe technology, allowing individual zones within a building to be cooled or heated simultaneously, optimizing comfort and energy usage.

Q: What types of indoor units are compatible with this VRF system?

A: The system supports cassette, ducted, wall-mounted, and floor-ceiling indoor units, catering to a wide variety of installation requirements and space layouts.

Q: Where can the Carrier VRF Heat Recovery System be installed?

A: It is ideal for commercial environments such as hospitals, hotels, offices, and large buildings, offering reliable climate management and flexible installation locations.

Q: What is the typical process for requesting a sample or making a purchase?

A: Interested clients can request a sample unit for evaluation. After reviewing the sample and agreeing on the asking price, the goods are prepared for handover and transported from the designated FOB port.

Q: What are the key benefits of its centralized control and remote monitoring features?

A: The centralized controller allows precise climate management and remote system monitoring, enabling efficient operation, reduced downtime, and proactive maintenance.

Q: How energy efficient is the Carrier VRF Heat Recovery System?

A: With an energy efficiency rating of up to 4.6 EER and smart digital controls, the system provides high performance while keeping operational costs low, making it a sustainable choice for commercial applications.
