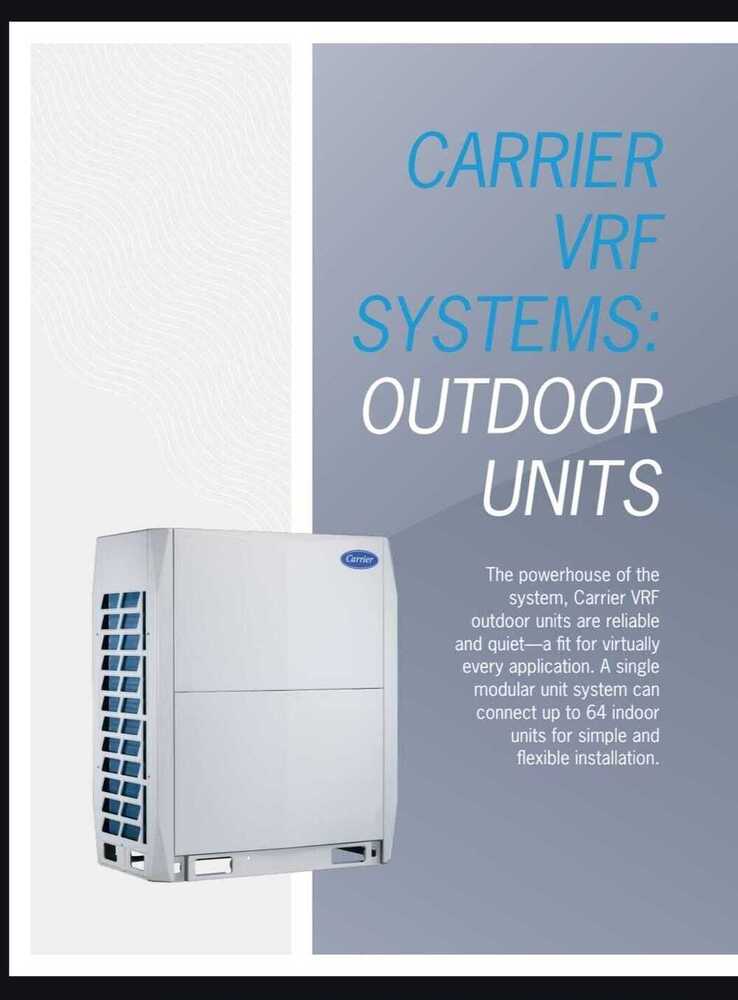

Carrier VRF System

Get a Price/Quote

MOQ : 1 Piece

Carrier VRF System Specification

Compressor
Scroll Type

Mounting
Floor Standing (Outdoor), Wall / Ceiling / Cassette (Indoor Options)

Dimension (L*W*H)
1340 x 900 x 320 mm (Typical for Outdoor Unit)

Outdoor Fan Input
0.22-1.2 kW

Running Current
7.3~42 A (Varies with Model)

Air Flow Capacity
600 to 6000 m3/h (Depending on Indoor Unit)

Filtration Grade
High Efficiency Filter

Condition
New

Power Consumption
Varies with Capacity (e.g., 3.8 kW and above)

Power Supply
3 Phase, 380-415V, 50Hz

Place of Origin
India

Heating Capacity
12.5 kW to 150 kW

Sensible control
Digital Control Panel

Refrigerant
R410A

Cooling Capacity
11.2 kW to 135 kW

Temperature Control
Microprocessor Based

Power Mode
Automatic / Manual

Indoor Fan Input
0.025-0.25 kW

Type Of Compressor
DC Inverter Scroll Compressor

Type
Variable Refrigerant Flow (VRF) System

Cooling/Heating
Both

Capacity
11.2 kW to 135 kW (varies with model)

Power Source
Electric

Voltage
380-415V, 3 Phase, 50Hz

Color
White

Weight (kg)
110-390 kg (Depending on Capacity)

Working Temperature
-5C to 48C (Cooling), -15C to 24C (Heating)

Fan Speed
Multi-speed

Noise Level
52 dB (Outdoor Unit, Typical)

Energy Efficiency Rating
Up to 4.30 (COP)

Remote Operated
Yes

Starting Method
Soft Starting

Pipe Length (Max./Total)
Maximum 1000 m total, 165 m actual

Oil Recovery Cycle
Automatic

Protection Functions
Over-current, High/Low Pressure, Phase Protection, Anti-freezing

Max. number of connectable indoor units
Up to 64 units

Defrost Function
Automatic

Outdoor Unit Cabinet
Corrosion Resistant Coated Steel

Controller Type
Wired/Wireless Remote, Centralized Controller Compatible

Indoor Unit Types Supported
Cassette, Ducted, Wall-mounted, Ceiling Suspended, Floor Standing

Refrigerant Pipe Connection
Flare/Nut Type

Installation Flexibility
Long piping design for complex buildings

System Configuration
Modular - Can connect multiple outdoor units

Communication Protocol
Proprietary - Supports BMS Integration

Carrier VRF System Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

Carrier VRF System About

The Carrier VRF System delivers distinguished climate control, engineered for specialists seeking acclaimed performance and design flexibility. This select solution supports up to 64 indoor units and allows modular configurations to connect multiple outdoor systems. Its long piping design is incomparable, offering installation freedom in complex buildings. Featuring a corrosion-resistant steel cabinet, high-efficiency filtration, and multi-speed fan, the Carrier VRF exemplifies robust reliability. Automatic defrost, oil recovery, and comprehensive protection functions guarantee terrific efficiency and long-lasting durability. Ideal for discerning projects requiring superior indoor comfort.

Exceptional Application, Features, and Build Quality

The Carrier VRF System is installed via a modular application method, supporting multiple outdoor units for tailored configurations. Distinguished by automatic defrost and oil recovery functions, it boasts robust protection features such as over-current, phase, pressure, and anti-freezing safeguards. Material excellence is assured with a corrosion-resistant coated steel cabinet and high-efficiency filter, while the microprocessor-based temperature control delivers precise performance. This is a special solution for projects demanding versatility, reliability, and premium construction.

Sample, Supply, and Packaging Information

Carrier VRF System samples are available for review before order confirmation, with a proposal amount specified for sample drop-off or shipment. The product supply ability is substantial to handle even large-scale demands, with quick turnarounds as required. Packaging is meticulously prepared using protective materials to minimize damage risk during transit. A nominal sample charge may apply, fully adjustable against bulk orders. Drop-off or shipping details, including packaging specifics, are shared with every formal quote or supply proposal.

FAQ's of Carrier VRF System:

Q: How many indoor units can be connected to the Carrier VRF System?

A: Up to 64 indoor units can be connected, providing exceptional flexibility for large or complex spaces.

Q: What types of indoor units are supported by the Carrier VRF System?

A: The system is compatible with cassette, ducted, wall-mounted, ceiling suspended, and floor standing indoor units, ensuring adaptability to varied installation needs.

Q: Where is the Carrier VRF System manufactured and supplied?

A: This system is manufactured in India and supplied nationwide by trusted service providers, suppliers, and traders.

Q: What protection features does the Carrier VRF System offer?

A: It includes comprehensive protection such as over-current, high/low pressure, phase protection, and anti-freezing safeguards to ensure safe and reliable operation.

Q: What are the sample and supply policies for the Carrier VRF System?

A: Product samples are available with a defined proposal amount that may include a sample charge, which is often adjusted against future orders. Detailed supply and packaging information is provided with every proposal.

Q: What are the major benefits of using the Carrier VRF System?

A: Key benefits include unparalleled installation flexibility, energy-efficient performance, robust material construction, quiet operation, and support for both cooling and heating applications in a wide working temperature range.
